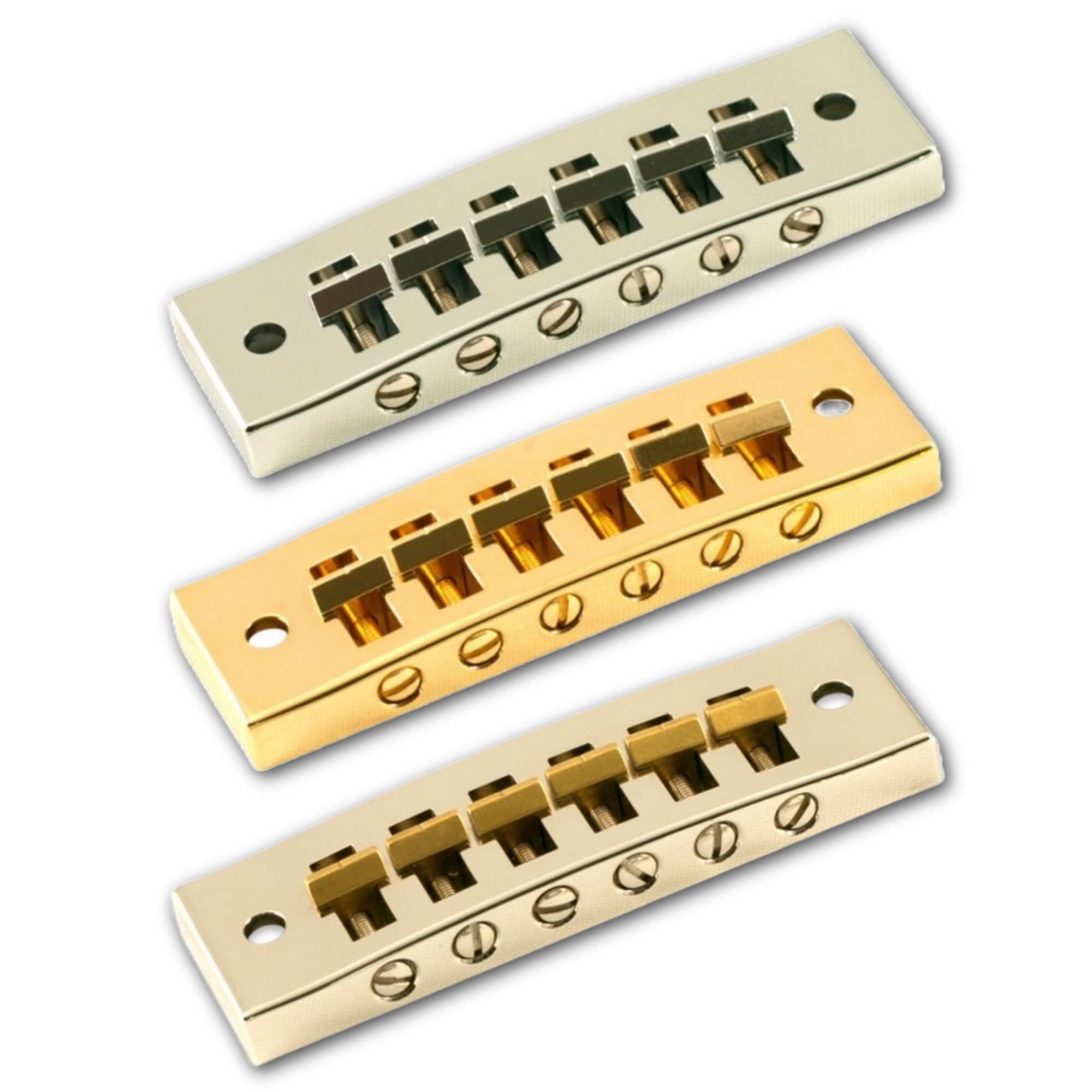

Individual Kluson "Harmonica" Tune-O-Matic bridge for electric guitar. Includes two studs and two inserts. Billet steel. Brass Saddles. Fits Gibson®.

This bridge, popularly referred to as the harmonica bridge is a direct replication of the original using all the same quality fabrication, dimensions and best of all, milled from steel billet or bell brass to give you the tone you crave. A proper replacement for all those vintage Gibson® guitars with no modifications necessary. Available with plated or unplated brass saddles. Studs and inserts included.

• Bridge Dimensions = 3-1/2" L x 1" W x 25/64" at Center
• E to E String Spacing = 52mm
• String Pitch = 10.4mm
• Radius = 12"

• Stud Thread = 8mm X 1.25 pitch
• Spacing Center to Center = 2-7/8" (73mm)
• Stud Top Diameter = 4.7mm
• Stud Base Diameter = 9.5mm

Available in:

• Chrome (Steel w/ Plated Saddles) [SKU:KHBSC]
• Gold (Steel w/ Plated Saddles) [SKU:KHBSG]
• Nickel (Steel w/ Unplated Saddles) [SKU:KHBSN]
