Pinnacle Nashville Tune-O-Matic Locking Bridge Posts - Fits Gibson® HP High Performance

$7.43
Quantity
Select color : Chrome
Pin·na·cle [pinək(ə)l] (noun) - the most successful point; the culmination.

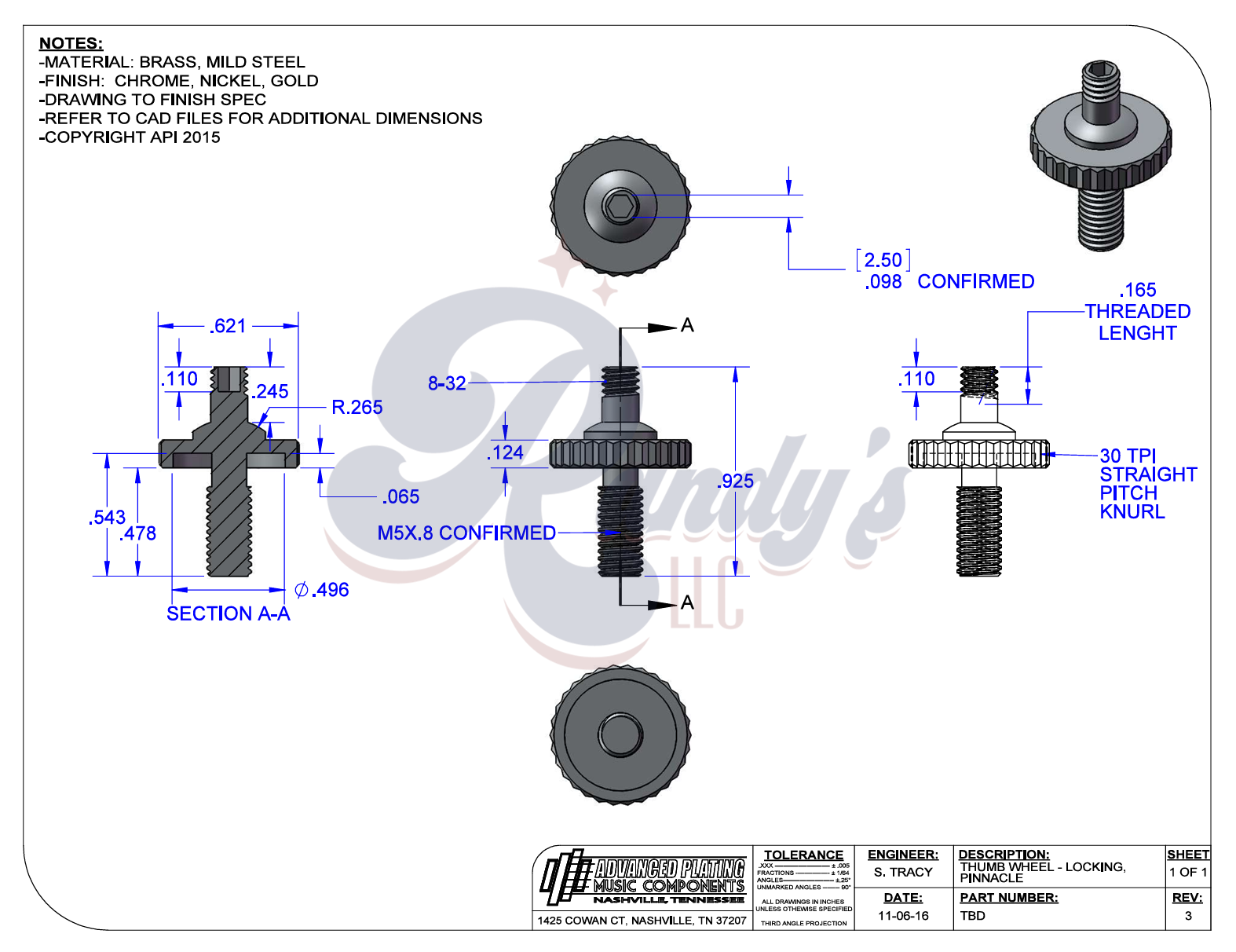

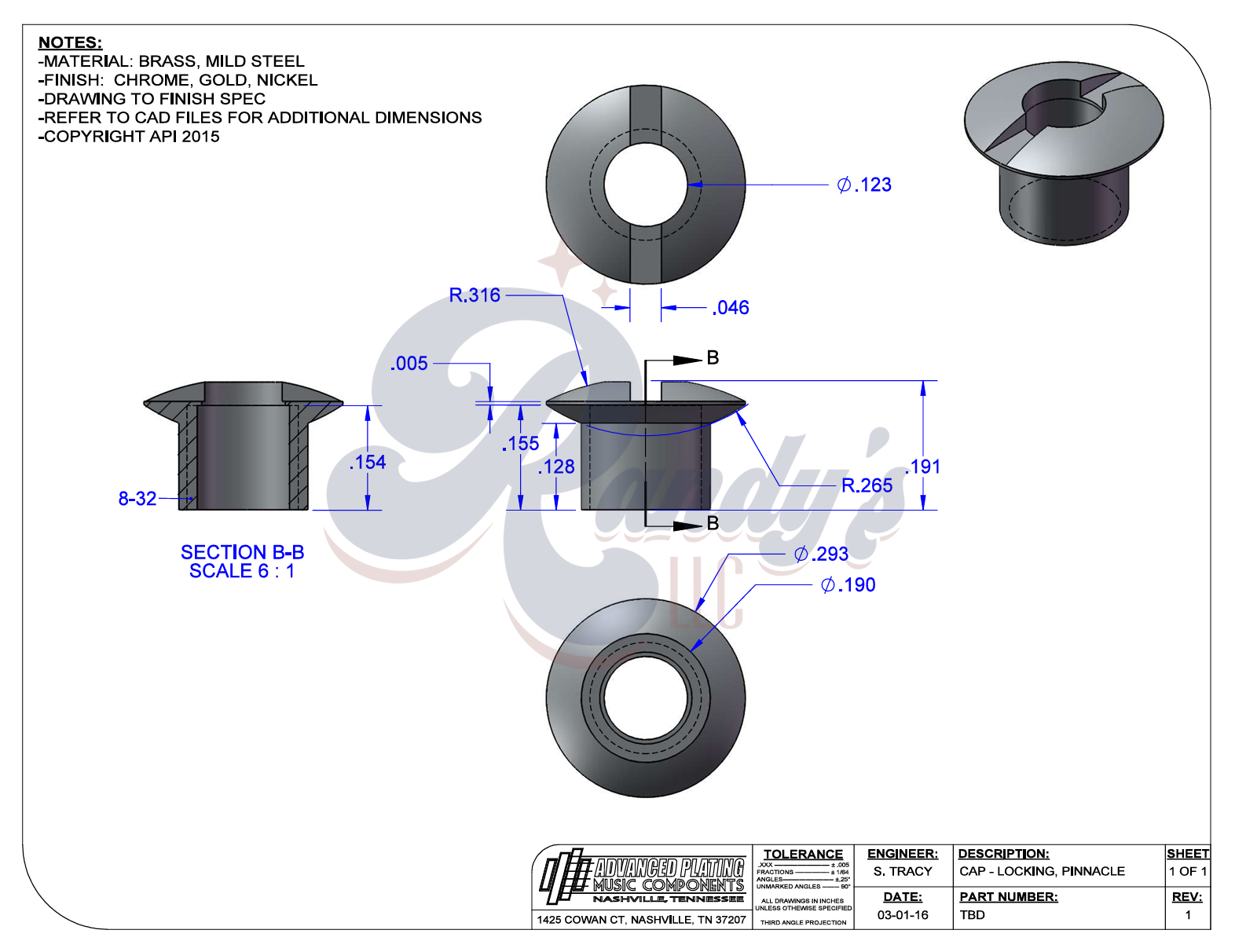

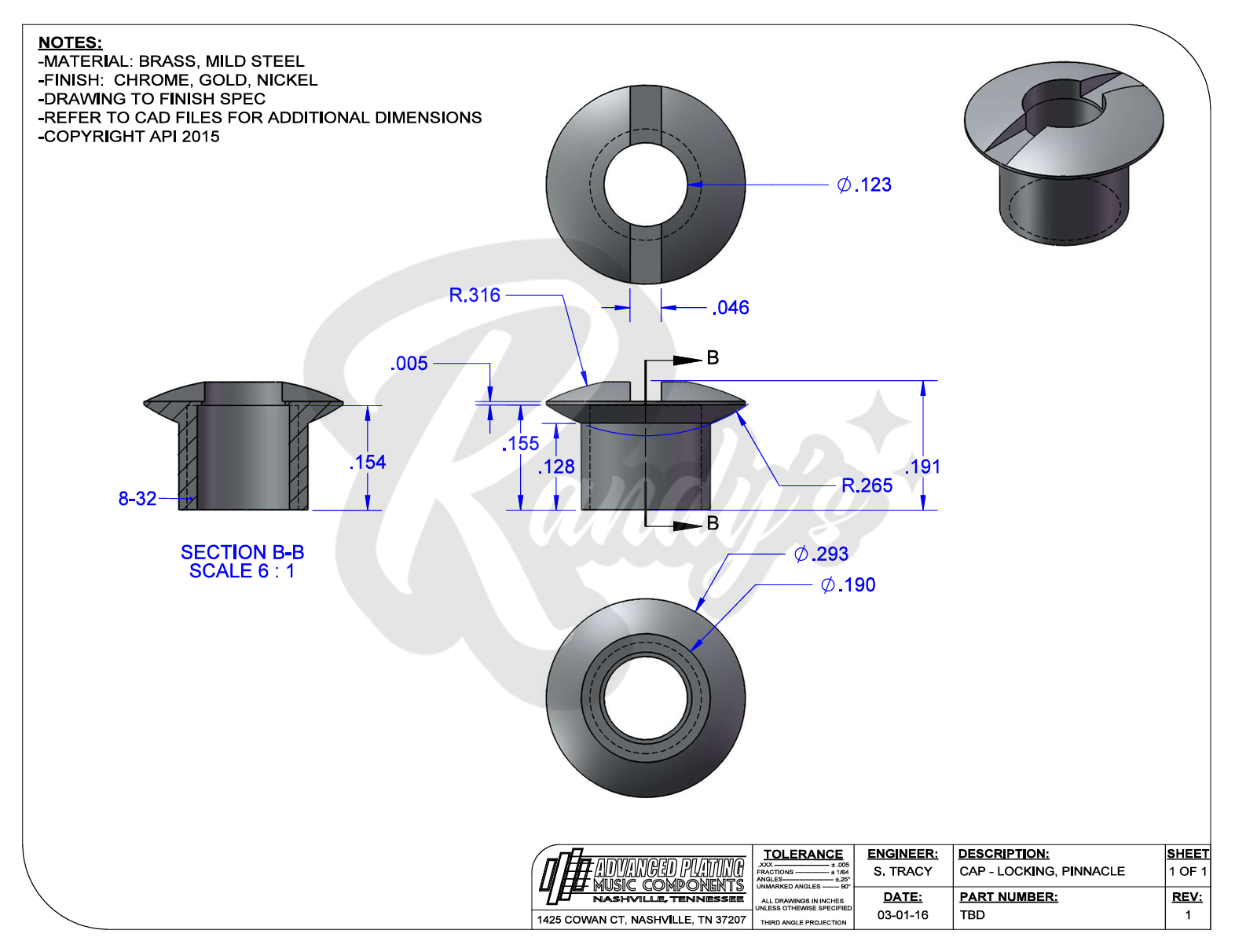

The Pinnacle locking system allows for maximum contact between the bridge and posts. Providing additional sustain and accentuates string attack. As with any locking bridge system, when you change the strings, the bridge stays place. The Pinnacle has a counter-bore (concave radius) on the bridge base top and bottom side of the mounting holes. The bridge posts/thumbwheels and caps have a matching convex radius. By mating the two radii, they make complete contact even when the bridge is not set up perfectly flat, as none ever are.

If you're looking for the best, look no further.

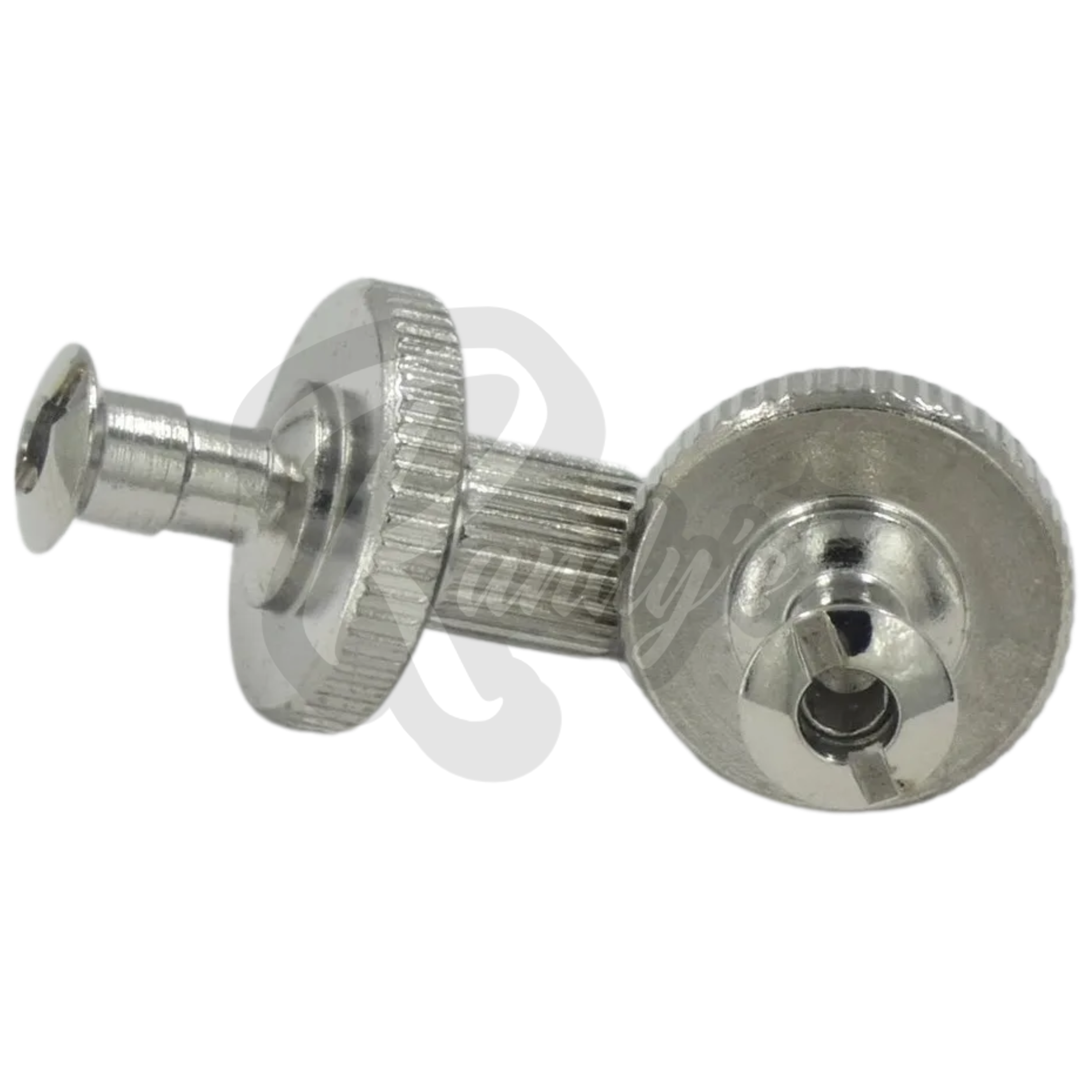

Includes two Pinnacle locking Nashville Tune-O-Matic TOM locking bridge posts, caps and anchors for electric guitar. Fits Gibson® HP High Performance.

  • Base Material - Steel
  • Hex Broach - 2.5mm
  • Thread Pattern - M5 x 0.8

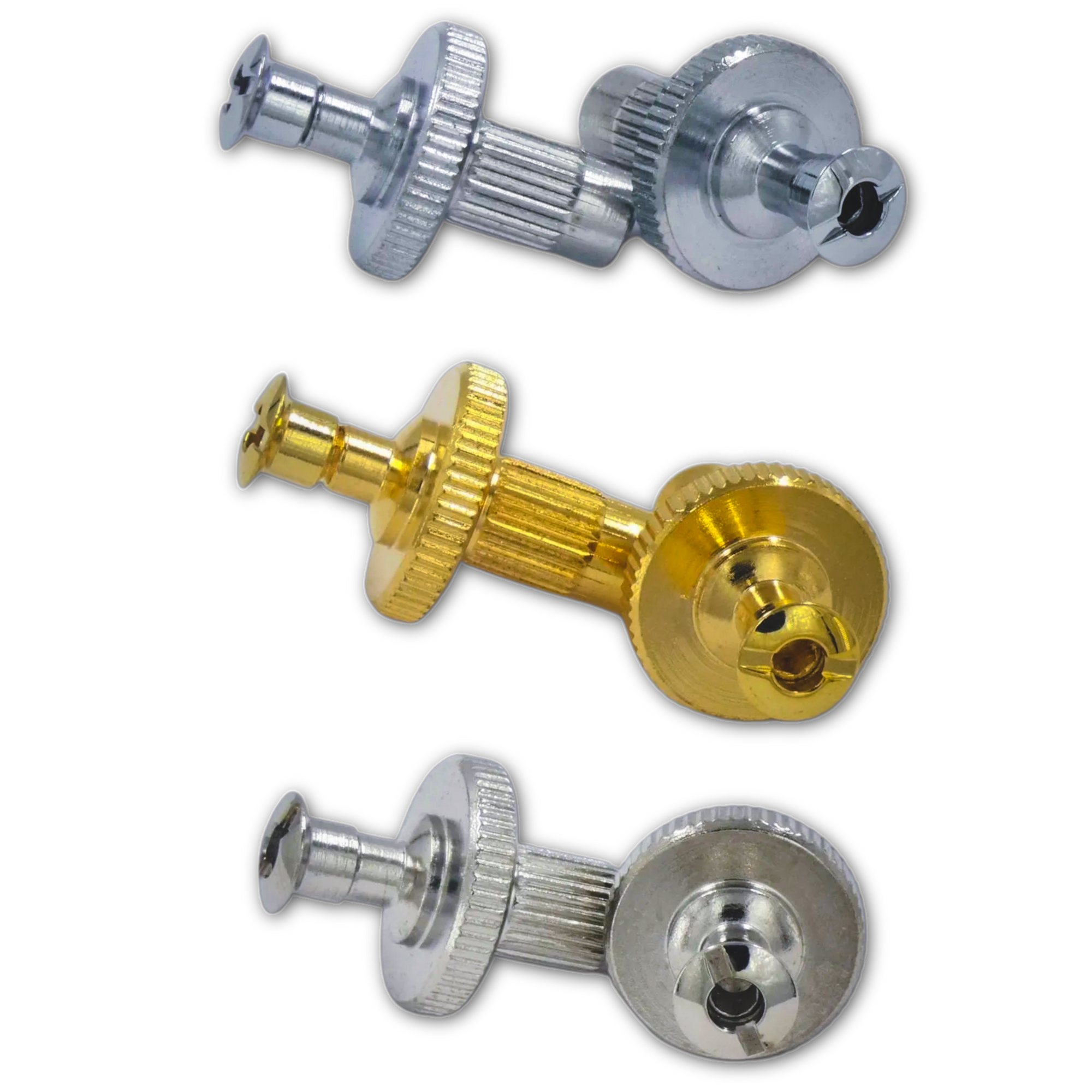

Available in:

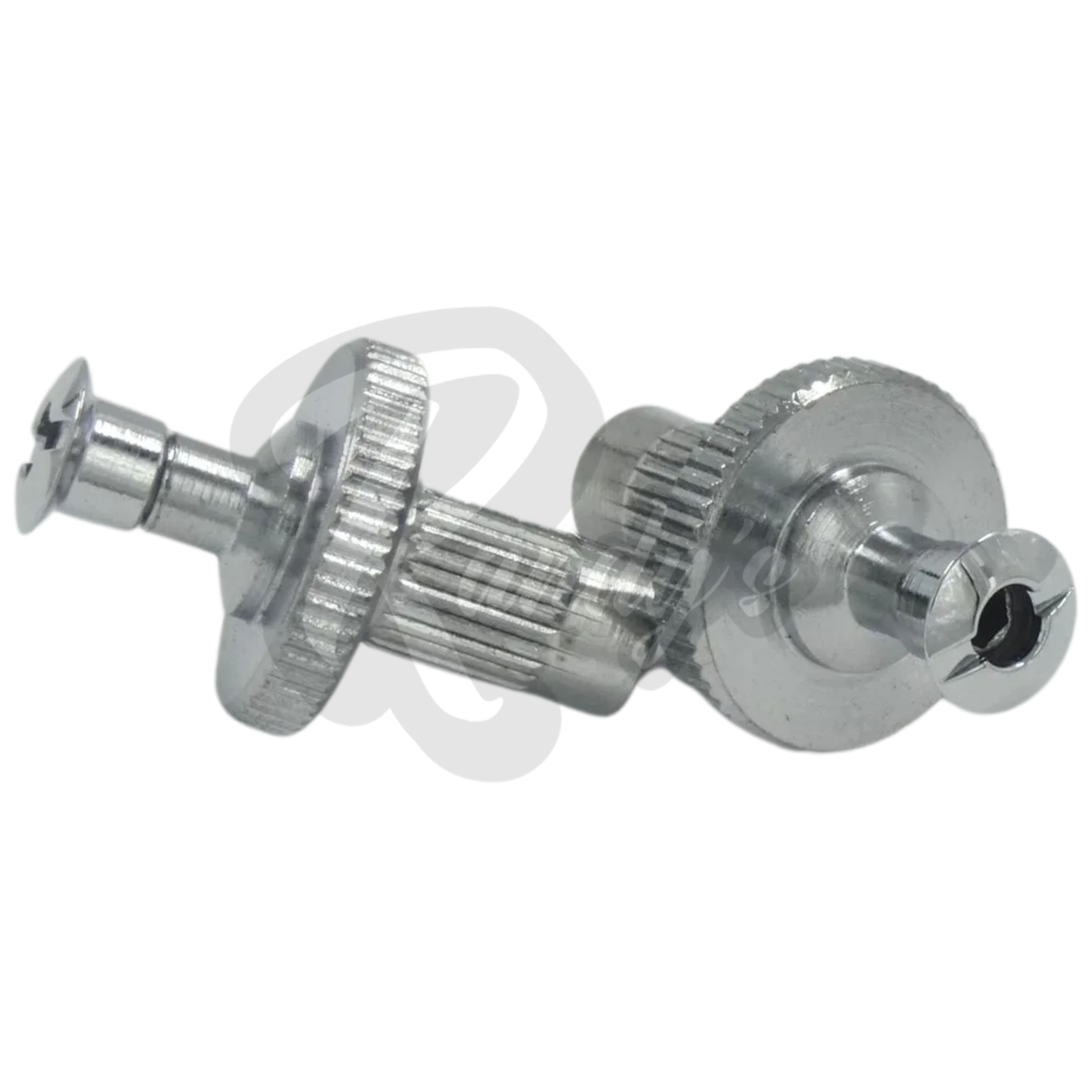

  • Chrome 1223C

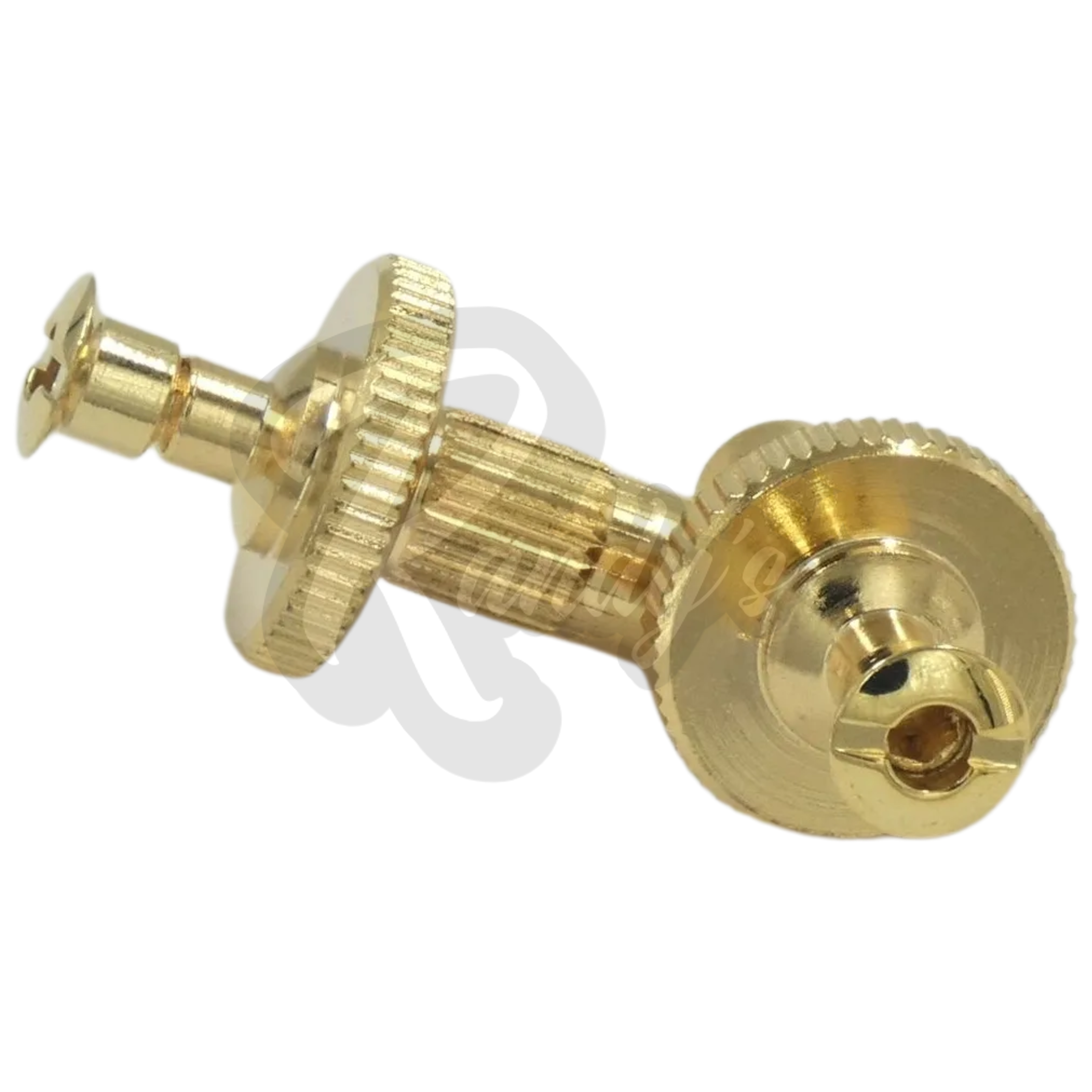

  • Gold 1223G
  • Nickel 1223N

** MATCHING HARDWARE **


Pinnacle Locking Nashville Tune-O-Matic TOM Bridge
  • Chrome w/ Titanium Saddles 1219-23C
  • Gold w/ Titanium Saddles 1219-23G
  • Nickel w/ Titanium Saddles 1219-23N
  • Chrome w/ Zinc Saddles 1217-23C
  • Gold w/ Zinc Saddles 1217-23G
  • Nickel w/ Zinc Saddles1217-23N

Advanced Music Products (AMP) is a division of Advanced Plating, Inc (API). Engineering and manufacturing guitar parts for the titans of the industry. Hardware that's been made in the USA for over 60 years. OEM fit, finish and function. Trust the brand your favorite brand's trust.
