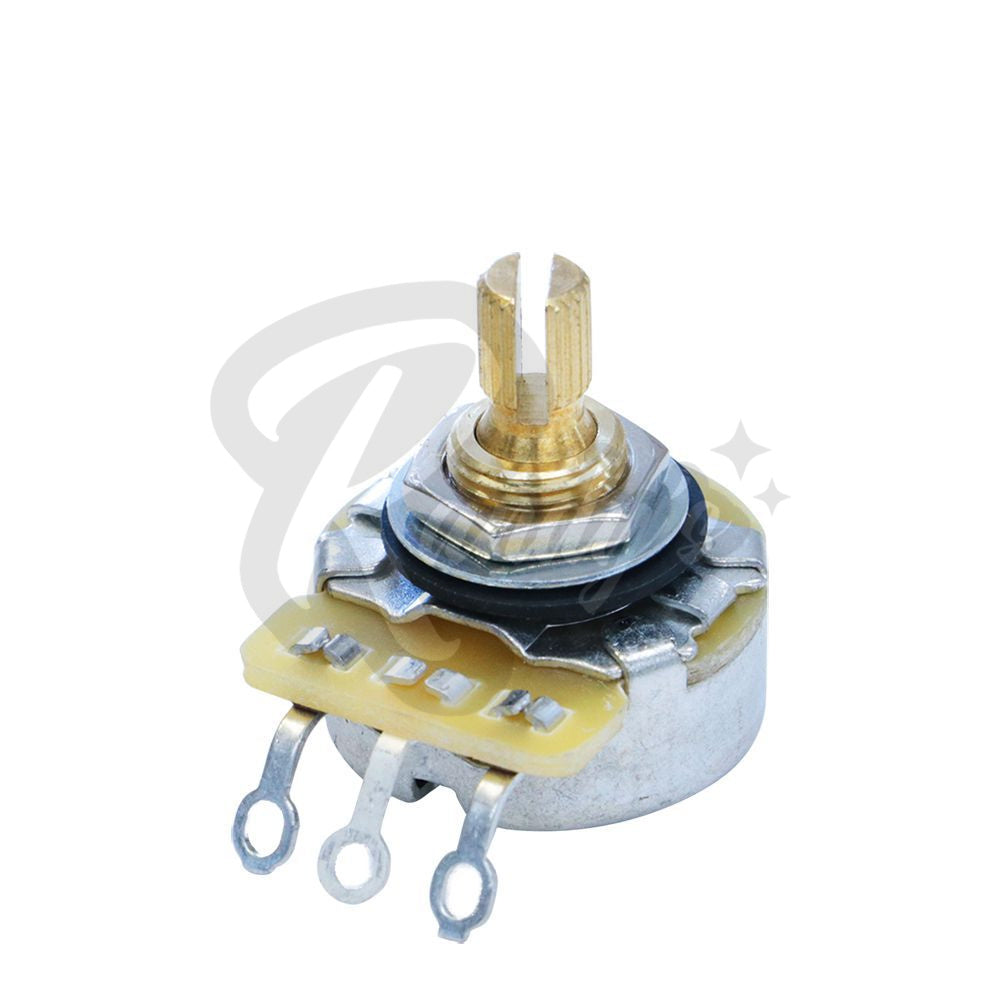

250KΩ Potentiometer ¼" Bushing (Fine) Short - Fits Gibson®

Individual CTS® 250K ohm pot for bass and electric guitar. Fits Gibson®.

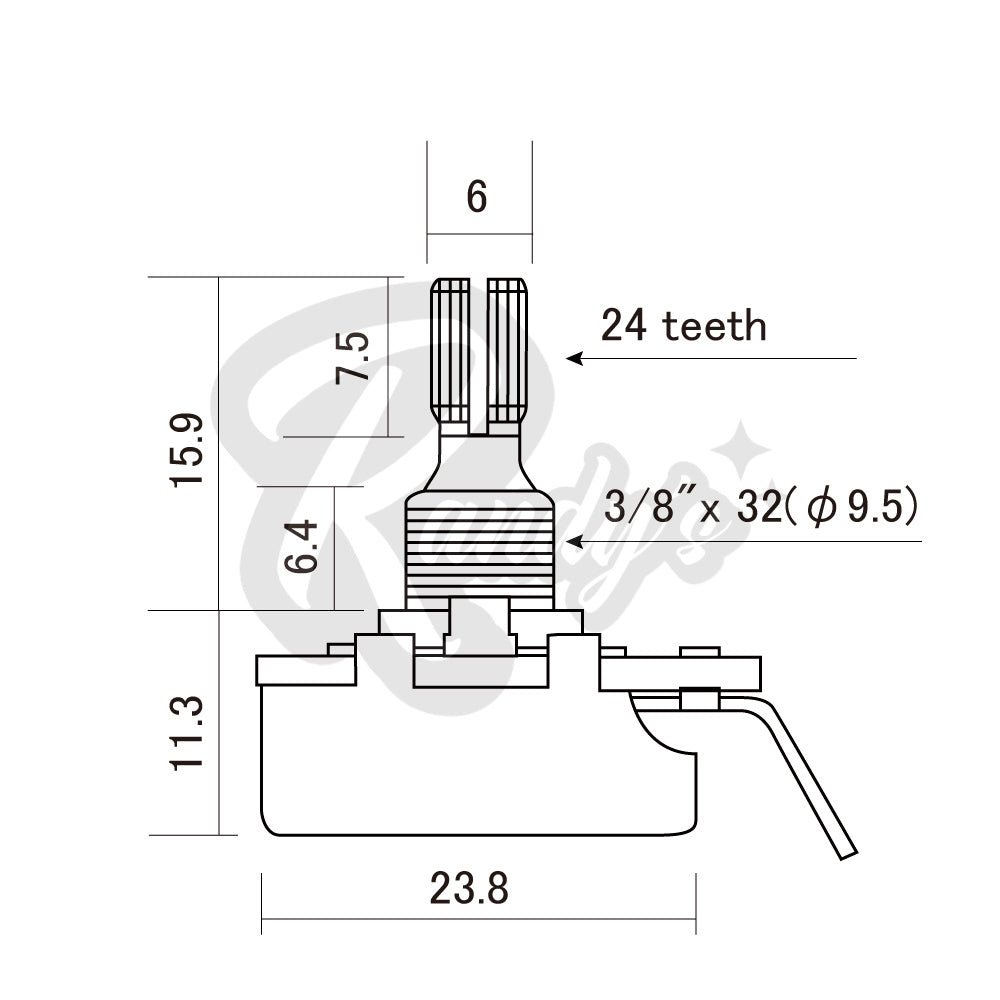

• Body Diameter: 24 mm
• Bushing Diameter: ⅜" (Threading: 3/8-32) SAE
• Bushing Length: ¼"
• Country of Manufacture: Taiwan
• Power Rating ¼ watt
• Shaft Diameter: ¼"
• Shaft Length: ⅜"
• Shaft Material: Brass - Fine Split Shaft


Ohm Ω Usage Guide

25KΩ

• Active Pickups

250KΩ

• Single Coil Pickups & Passive Bass Pickups

275KΩ

• Vintage Gibson® Single Coil Pickups

500KΩ

• Humbucker Pickups & Passive Bass Pickups

550KΩ

• Vintage Gibson® Humbucker Pickups

Bushing Usage Guide

• ¼" for Pickguard Mounting, Fender® Stratocaster®-Style
• ⅜" for Standard Mounting, SG®-Style
• ¾" for Carved Top Mounting, Les Paul®-Style
