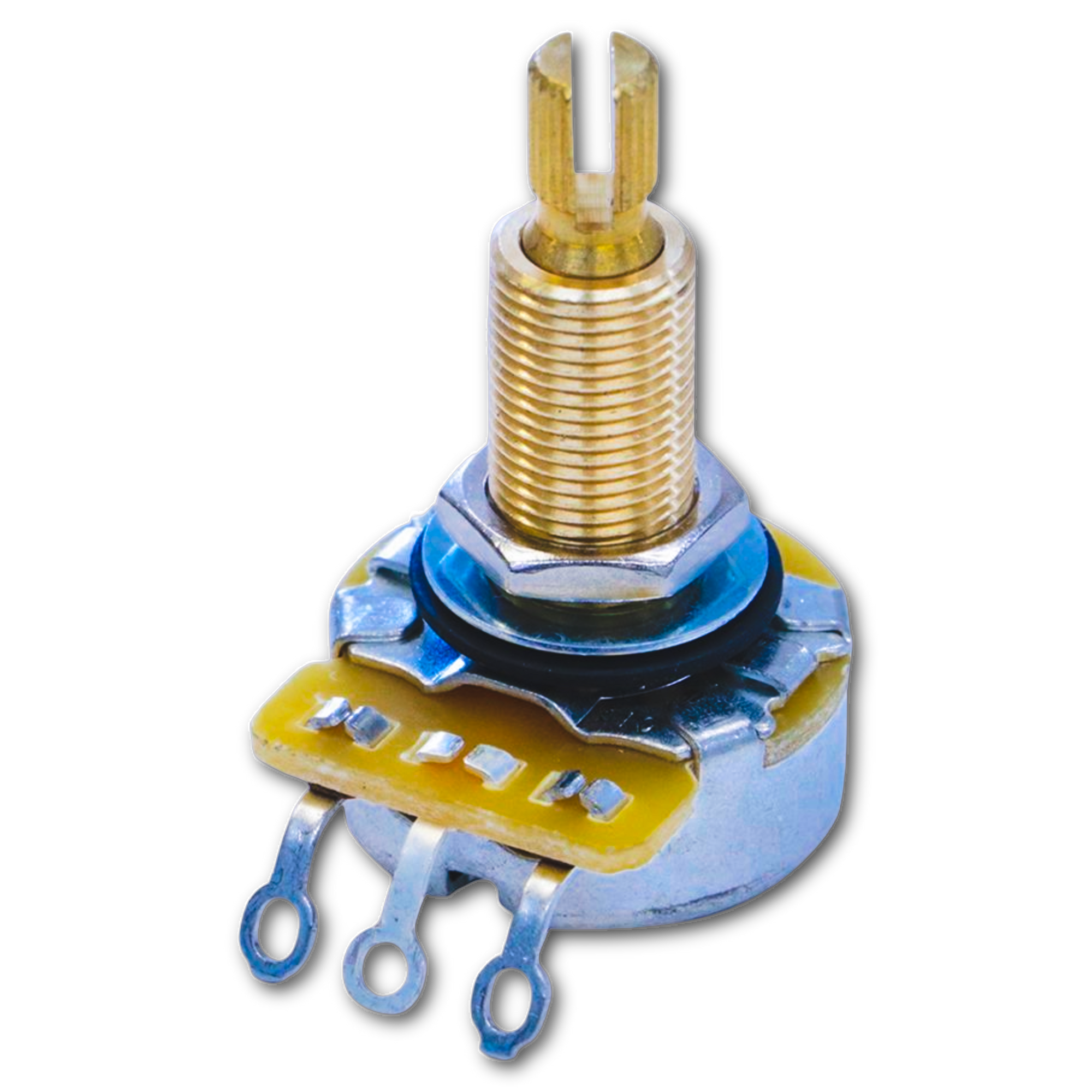

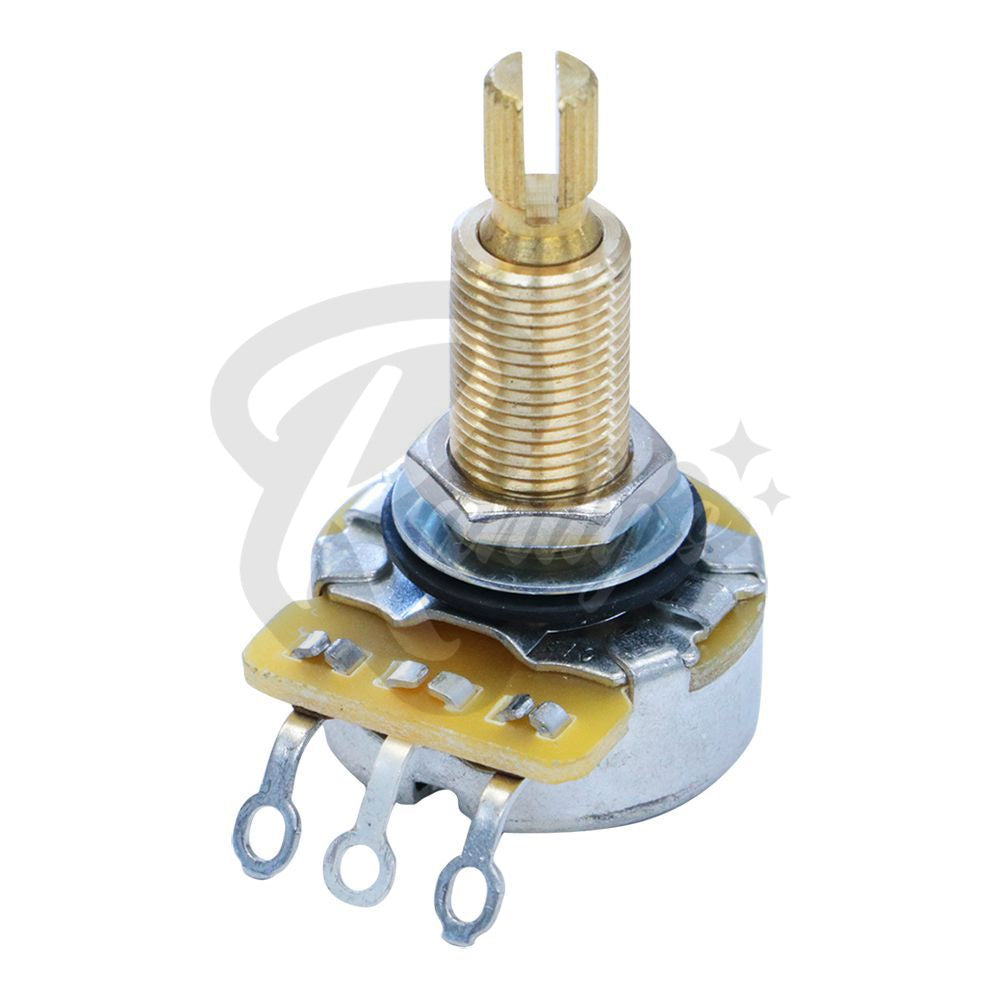

550KΩ Potentiometer ¾" Bushing (Fine) Long - Fits Gibson® Les Paul®

Individual CTS® 550K ohm pot for bass and electric guitar. Fits Gibson® Les Paul® carved top.

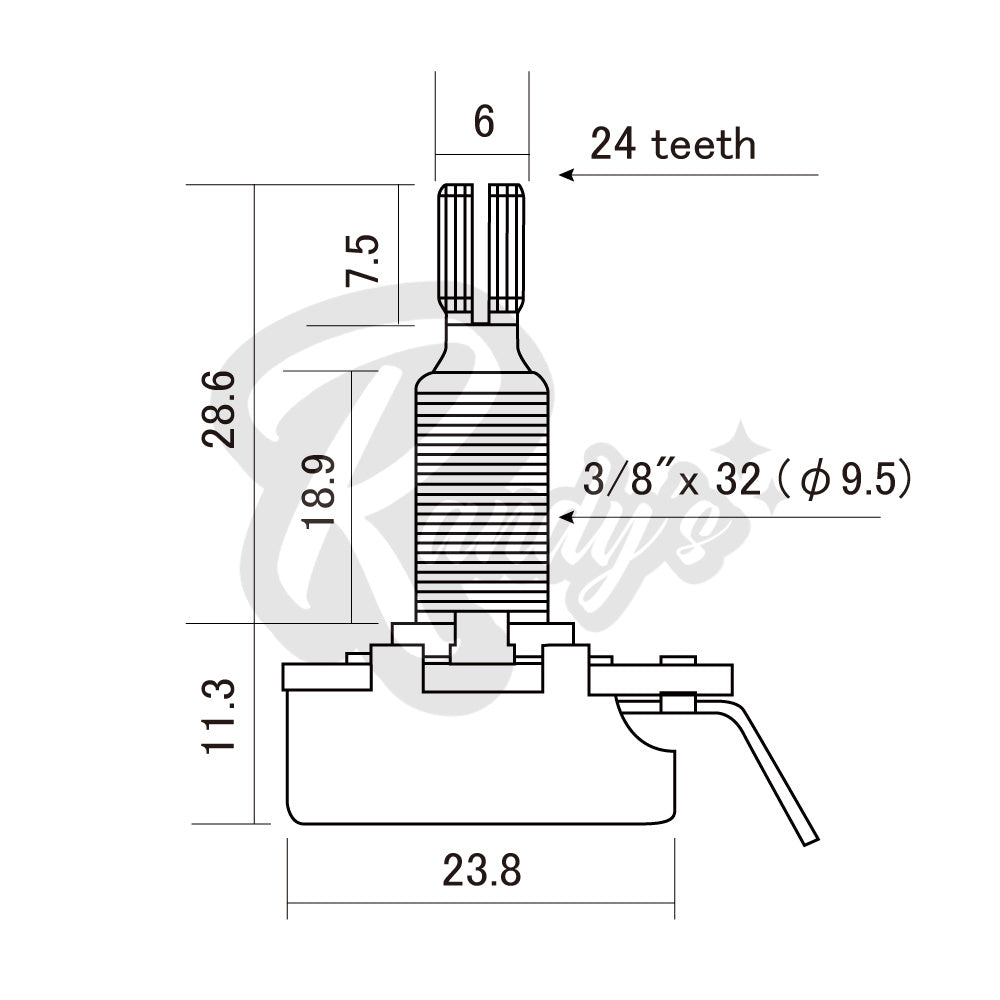

• Body Diameter: 24 mm
• Power Rating ¼ watt
• Bushing Diameter: ⅜"
• Bushing Length: ⅜"

• Bushing Threading: ⅜-32
• Country of Manufacture: Taiwan
• Required Mounting Hole: ⅜"
• Shaft Diameter: ¼"
• Shaft Length: ¾"
• Shaft Material: Brass
• Shaft Size: Imperial Fine Spline Split Shaft (24-Tooth)
• Taper: Audio
• Tolerance: ±9%

Ohm Ω Usage Guide

25KΩ

• Active Pickups

250KΩ

• Single Coil Pickups & Passive Bass Pickups

275KΩ

• Vintage Gibson® Single Coil Pickups

500KΩ

• Humbucker Pickups & Passive Bass Pickups

550KΩ

• Vintage Gibson® Humbucker Pickups

Bushing Usage Guide

• ¼" for Pickguard Mounting, Fender® Stratocaster®-Style
• ⅜" for Standard Mounting, SG®-Style
• ¾" for Carved Top Mounting, Les Paul®-Style
