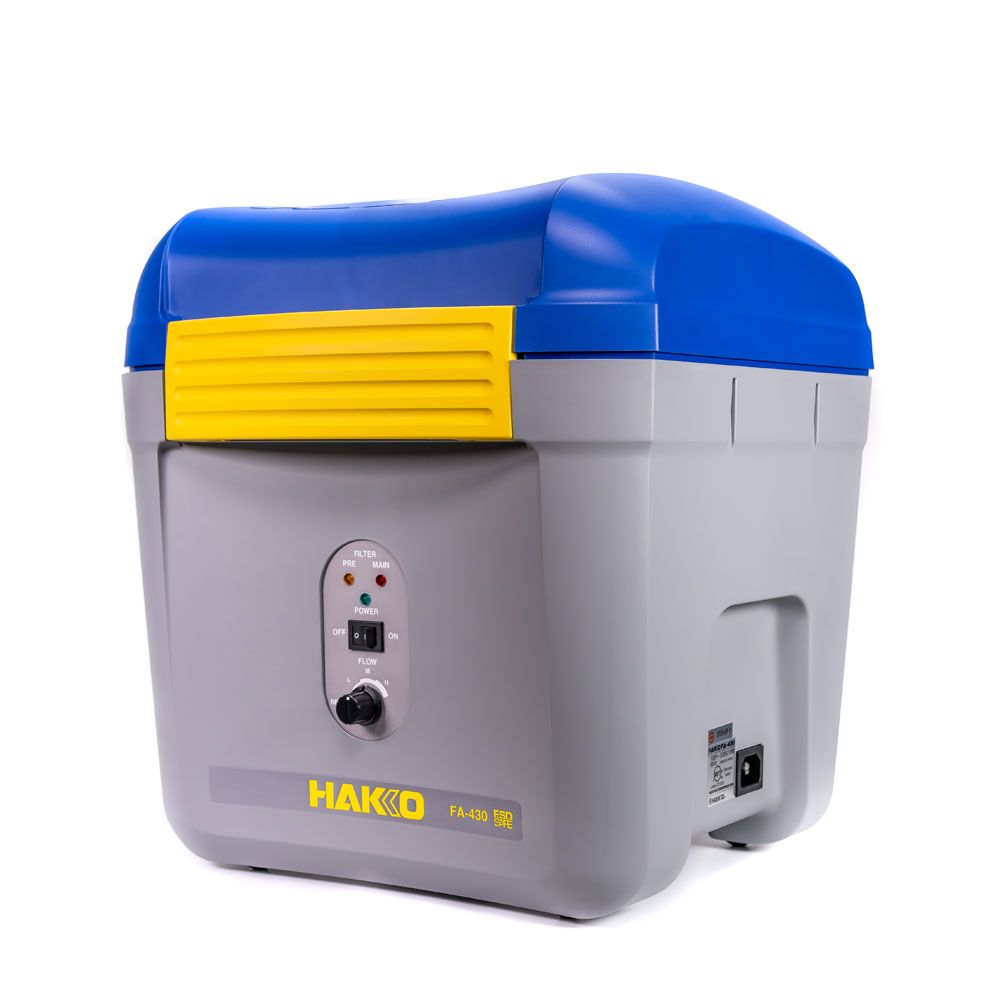

FA-430 Solder Fume Extraction System & HEPA Filter w/ Duct & Rectangular Nozzle

An essential tool for a guitar builder's workbench. The Hakko® FA-430 Smoke and Fume Extractor is specially designed for use in the electronics soldering process by extracting the contaminated air directly at the source. The three stage filtering system returns purified air to the area. Kit includes filter and duct kit with round nozzle.

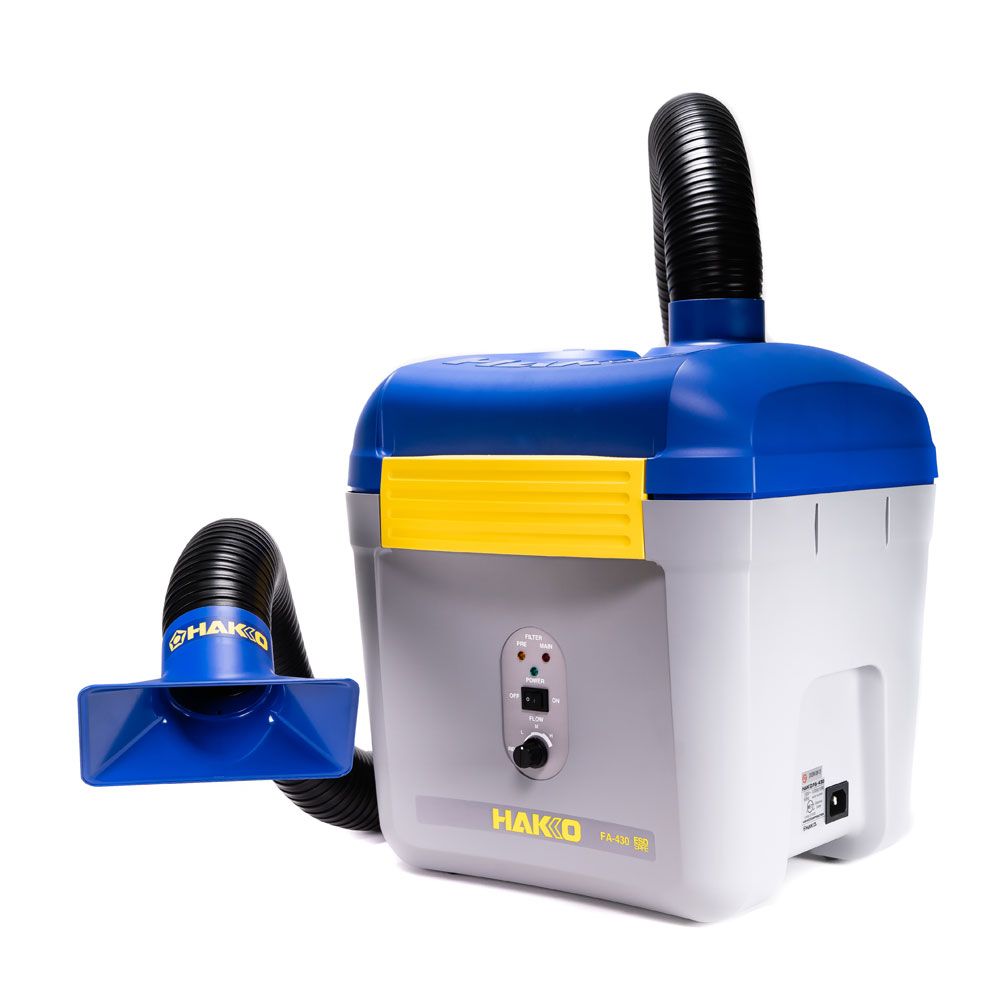

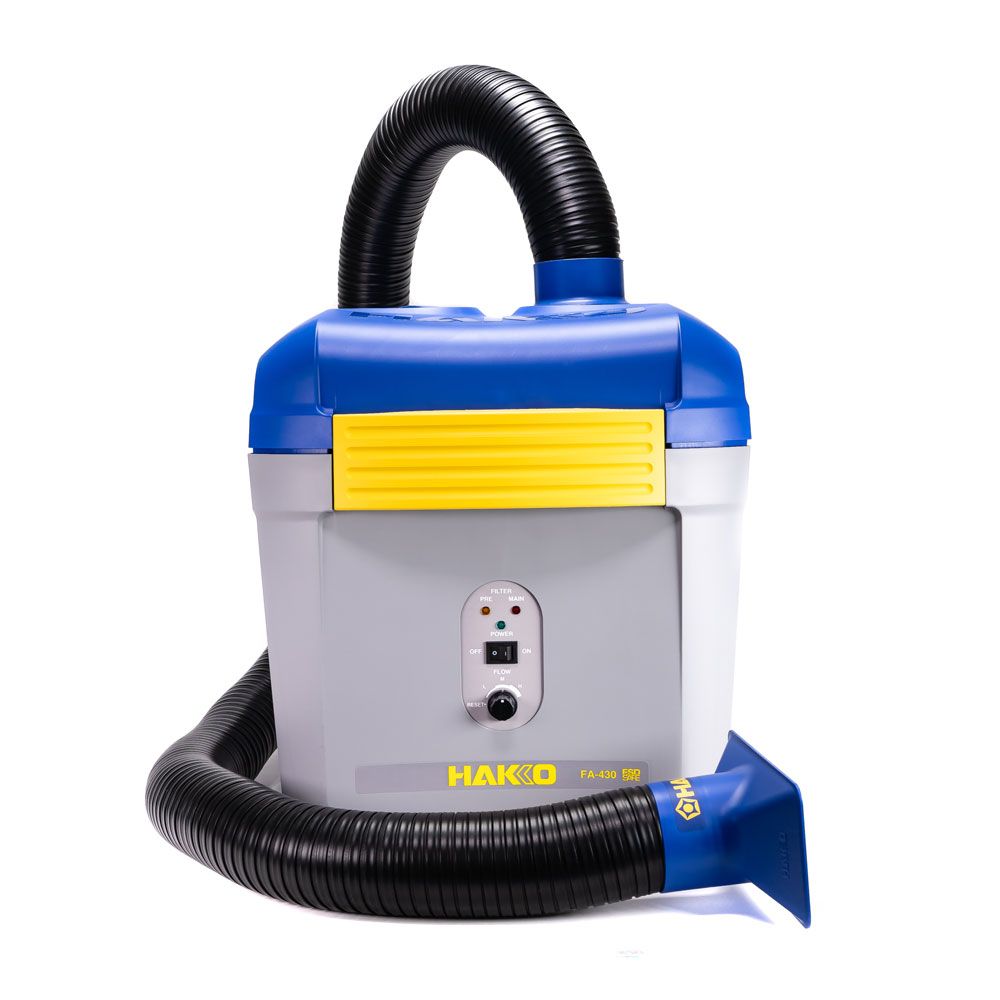

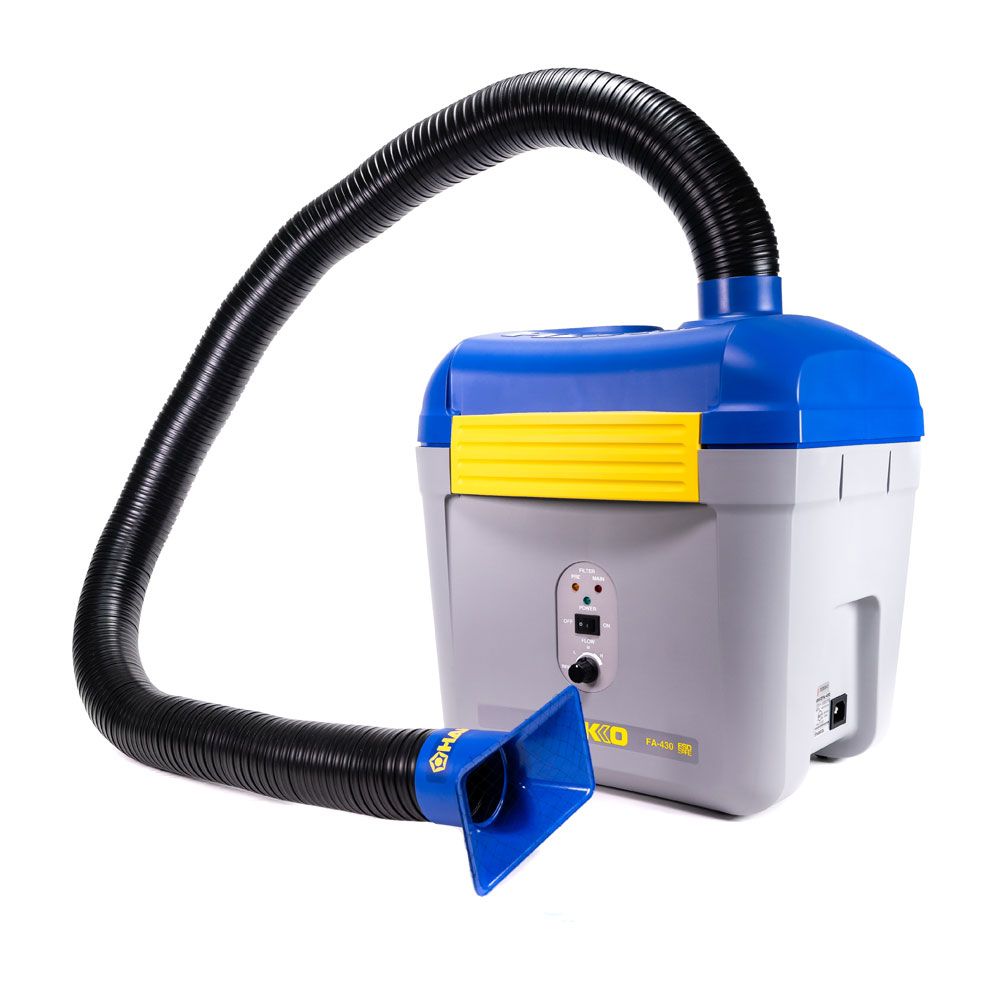

The Hakko® FA-430 fume extraction unit is designed expressly for use at soldering stations, extracting the contaminated air directly at the source. (Shown above: Loc-Line duct with rectangular nozzle.)

Contaminated air is captured from the workplace surrounding the soldering station by the hood or hoods, and transferred to the FA-430 unit by rigid ducts, and a special replacement filter notification function notifies the operator when the filter needs to be replaced.

Inside the unit, two filters, comprising three stages of filtering, remove the contaminants from the air. The purified air is then returned to the area where the FA-430 is located.

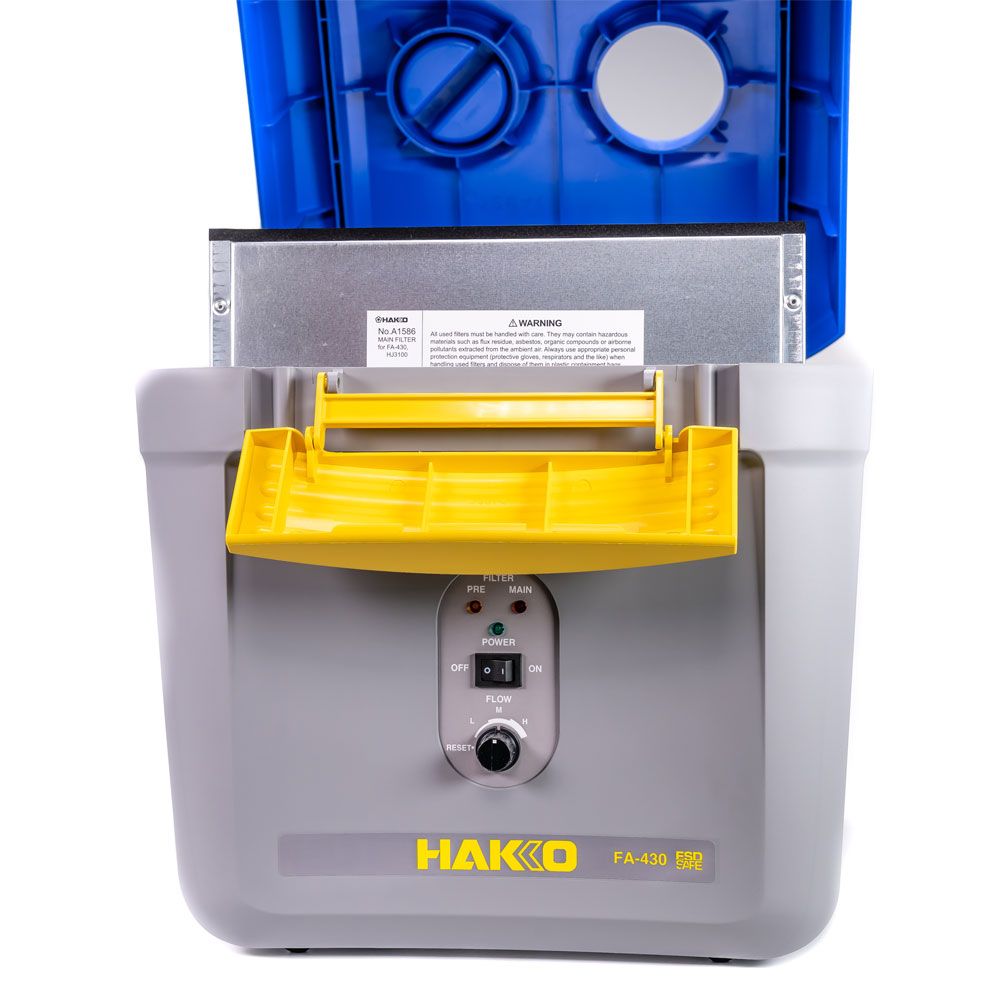

The pre-filter removes coarse particles, such as dust, thus extending the life of the main filter. The main filter provides the greatest amount of surface area within the volume of the filter case.

The standard filters contain an activated carbon element built into the filter. This filter is designed to last the life of the main filter.

• Powerful suction
• Quiet operation
• 3-airflow adjustment modes: High, Medium, Low
• Free standing ducts
• To maintain optimum filtering efficiency, special filter replacement indicators on the front panel notify you when it is time to replace the filters.
• Kit includes duct kit with rectangle nozzle

Specifications

What's in the box?

• Fume Extraction Unit
  • FA430-16
• Pre-filter
  • A1585
• Main Filter
  • A1586
• Port Cap
  • B3619
• Duct Kit with rectangle nozzle
  • C1571
• Power Cable
  • B3641
• Instruction Manual
