Workbench System LED Light Bar

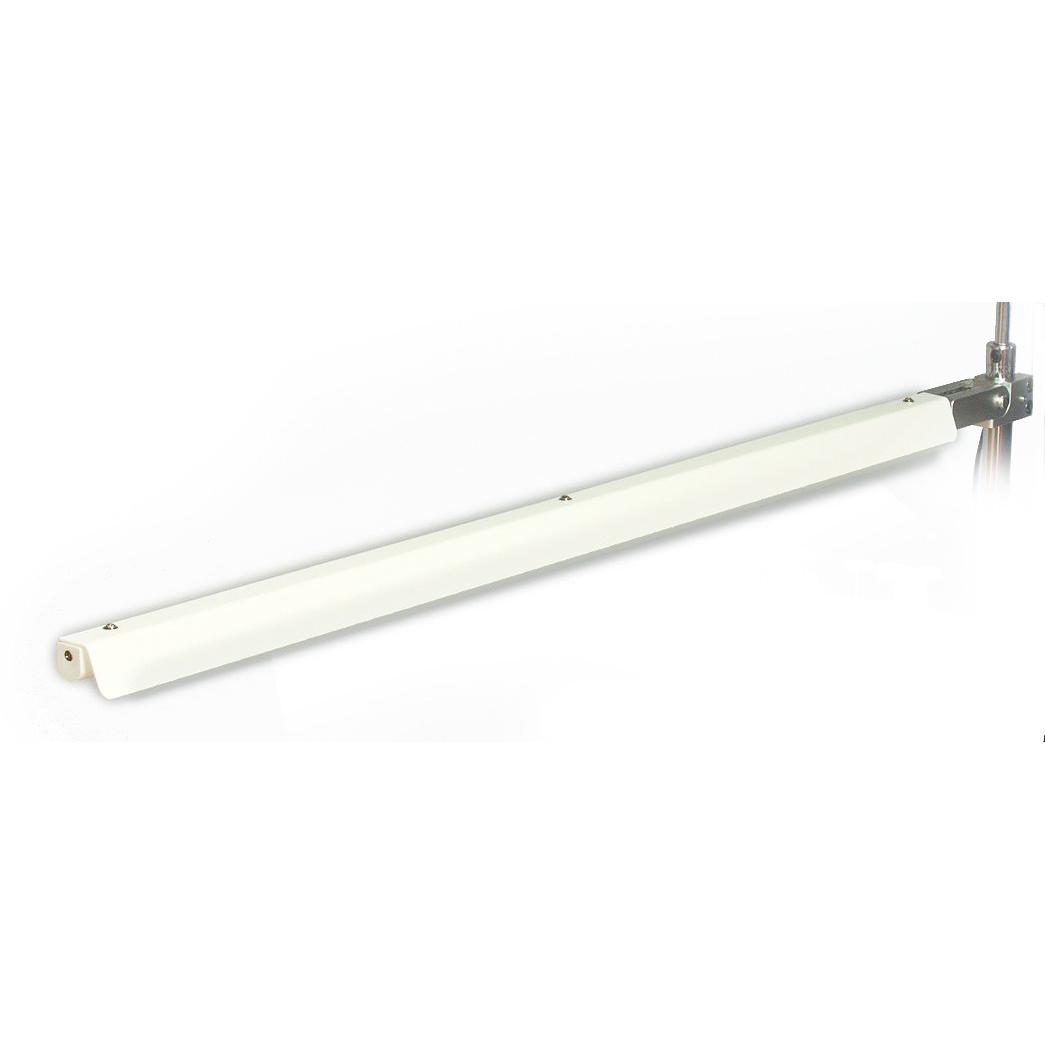

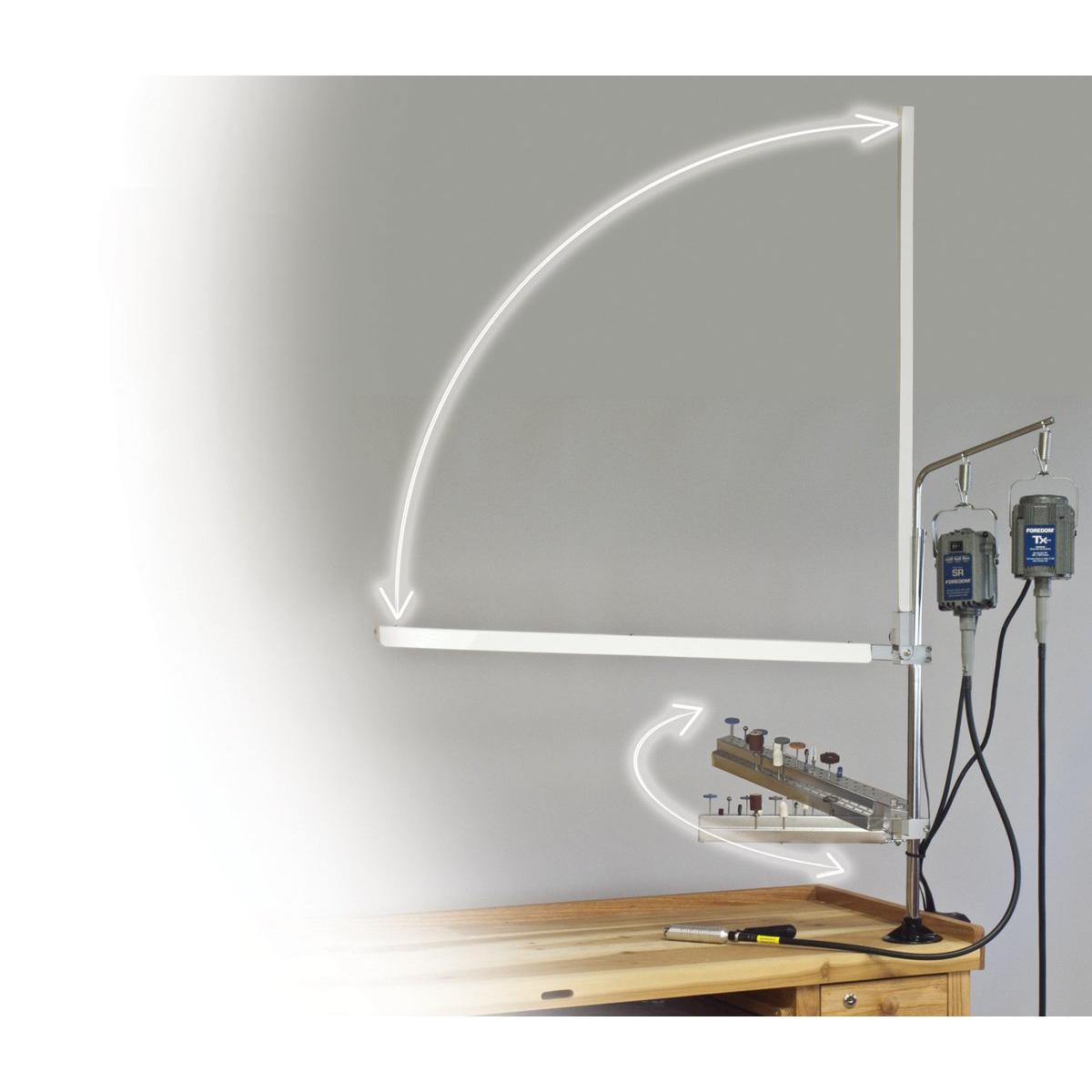

LED Light Bar with shade is designed to illuminate an entire work surface. This unique light is “ON” when in the horizontal position and “OFF” when pivoted 90º upright (see photos). The Light Bar is a component of Foredom®’s Workbench System. It has a mounting bracket for use with the MAMH-13 Double Motor Hanger, described below, but can also be installed on two other component support rods. Alternate rods are great for users who already own a motor hanger, work with micromotors and other non-flex shaft tools, or just want and need a method to get organized. The Light Bar must be plugged in to work. Its Cord Set connects to a separate adapter/transformer which plugs into an electrical outlet. Comes with 2-year limited warranty.

The Light Bar shade comes mounted for right handed users and can be flipped for left hand use.

Specifications:

• 31-1/2" (80cm) Long
• 630 Lumens
• 9 Watt, 24 Volt
• For 115 or 230 Volt Use

Components of the Workbench System, including the MALB-1 LED Light Bar featured here, are all available separately.

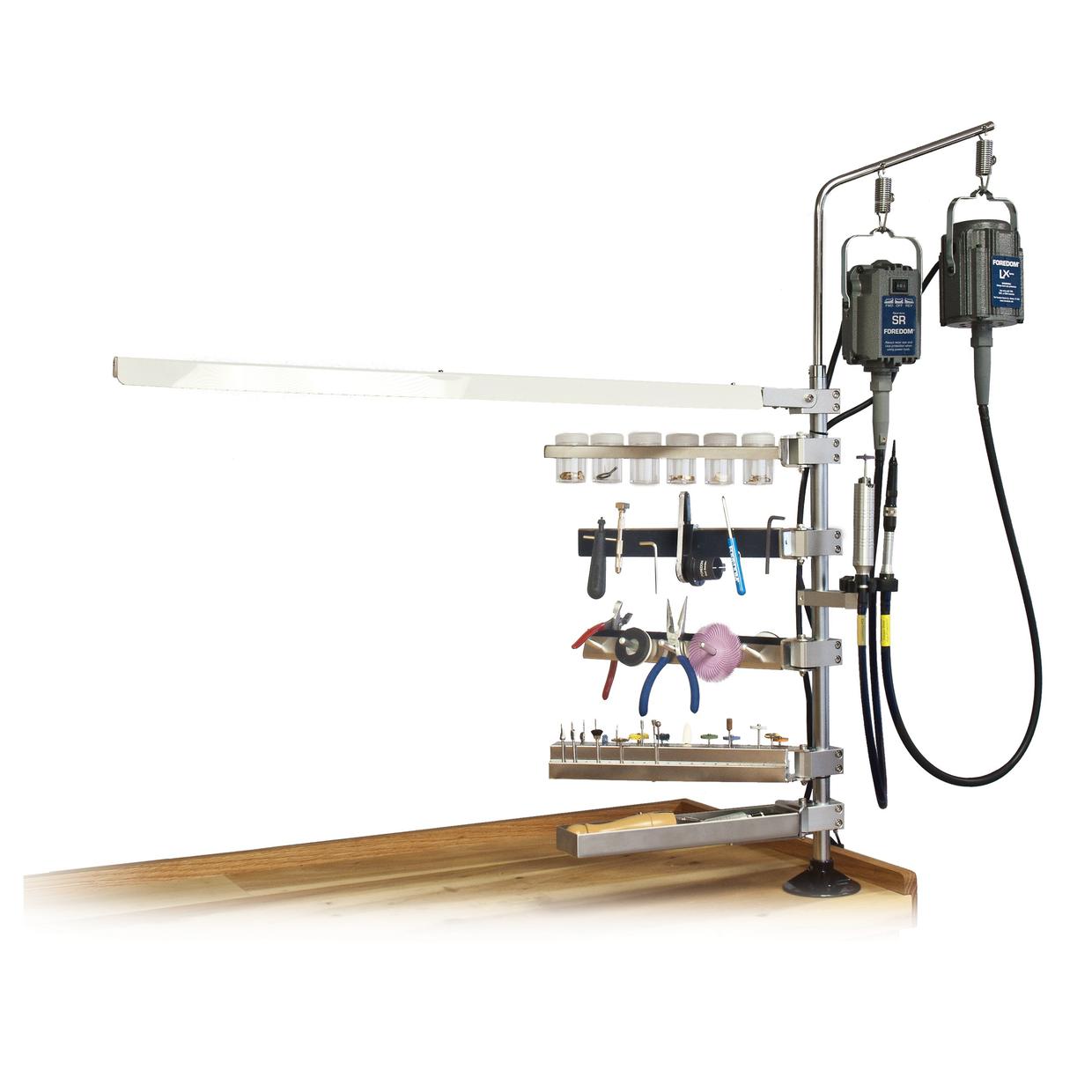

Foredom®’s Workbench System is more than just a motor hanger. This quality constructed, modular system is a new and attractive way to organize and light your workspace for jewelers, carvers, lab technicians and precision fabricators. Each component of the Workbench System shown here, is available separately.

The customizable components attach to the MAMH-13 Double Motor Hanger or two sizes of support rods for users who already have a motor hanger, work with micromotors and other non-flex shaft tools, or just want and need a method to get organized. The pivoting LED Light Bar, and 10 “Component Arms” that swing horizontally 180º to keep accessories or compact tools within reach, or stored out of the way when not needed. A Dual Handpiece Rest that attaches to the support rod is also available.

The MAMH-13 Motor Hanger is the central component of the Foredom® Workbench System. Components are made of brushed stainless steel, anodized aluminum, and powder coated steel.

Component Arms are 12″ long with uniform mounting brackets for design consistency

1. MAAH-B Bur Holder Arm with two tiers for holding 95 burs with  3/32″ and 1/8″ shanks. Arm: 12″ l x 2″ w x 1-1/4″ h (30cm x 5cm x 3cm), 2.5 lb packaged wt.
2. MAMH-J Arm for 6 Jars with plastic screw on caps. 6– 1.35 oz. (40ml) plastic jars with screw on tops. Jars are 1-1/2″ (3.18cm) in diameter and 2-1/8″ deep (55mm). Arm: 12″ l x 2″ w x 2-1/2″ h (30cm x 5cm x 6cm), 1.7 lb packaged wt.
3. MAAH-P Peg Arm with 10 angled 1-1/2″ long pegs and non-scratching felt along the upper edge. Use to hang saw frames, store pliers, tweezers, etc. on non-scratch felt upper edge. 5 Pegs on each side are 1-1/2″ long x 5/16″ in diameter (3.7cm x 0.8cm). Arm: 12″ l x 4″ w x 1-1/2″ h (30cm x 10.2cm x 3.7cm), 1.9 lb packaged wt.
4. MAMH-M Magnetic Arm with non-scratch felt surface. Securely holds various accessories and small metal tools. Please Note: This arm can magnetize tools. Arm: 12″ l x 1/2″ w x 1-1/2″ h (30cm x 1.2cm x 3.7cm), 2.6 lb packaged wt.
5. MAAH-T Tray Arm with 3 movable partitions. Arm: 12″ l x 2-1/4″ w x 1-1/4″ h (30cm x 5.8cm x 3cm), 2.6 lb packaged wt.
6. MAAH-H Multi Handpiece Arm with pegs for storing up to six handpieces. Arm: 12″ l x 2-1/4″ w x 1-1/4″ h (30cm x 5.8cm x 3cm), 1.7 lb packaged wt.
7. MAAH-S Shelf Arm – medium is a platform for holding compact bench top tools including a micromotor, filter hood, wax carver and more. Arm: 4.7″ x 6.1″ (120mm x 155mm), 2.0 lb packaged wt.
8. MAAH-S2 Shelf Arm – small is a platform for holding compact bench top tools including a micromotor, filter hood, wax carver and more. Arm: 10.2″ x 8.7″ (260mm x 220mm), 3.15 lb packaged wt.
9. MAAH-S3 Shelf Arm – large is a platform for holding compact bench top tools including a micromotor, filter hood, wax carver and more. Arm: 9.3″ x 13.2″ (235mm x 335mm), 4.2 lb packaged wt.
10. MAAH-HR Dual Handpiece Rest  Holds two handpieces off the work surface when not in use. Made of polycarbonate and aluminum. Dimensions: 5-1/4″ l x 3-1/4″ w x 1-1/2″ h (13.3cm x 8.3cm x 3.8cm), 1.1 lb packaged wt.
11. MAAM-L 25-3/4″ Support Rod –  .875″ dia. upright rod for holding components of the Work Bench System. Includes MABC-3 Mounting Plate and wood screws. For users who already have a motor hanger.
12. MAAM-S 17-3/4″ Support Rod – .875″ dia. upright rod for holding components of the Work Bench System. Includes MABC-3 Mounting Plate and wood screws. For users who already have a motor hanger.

MALB-1
