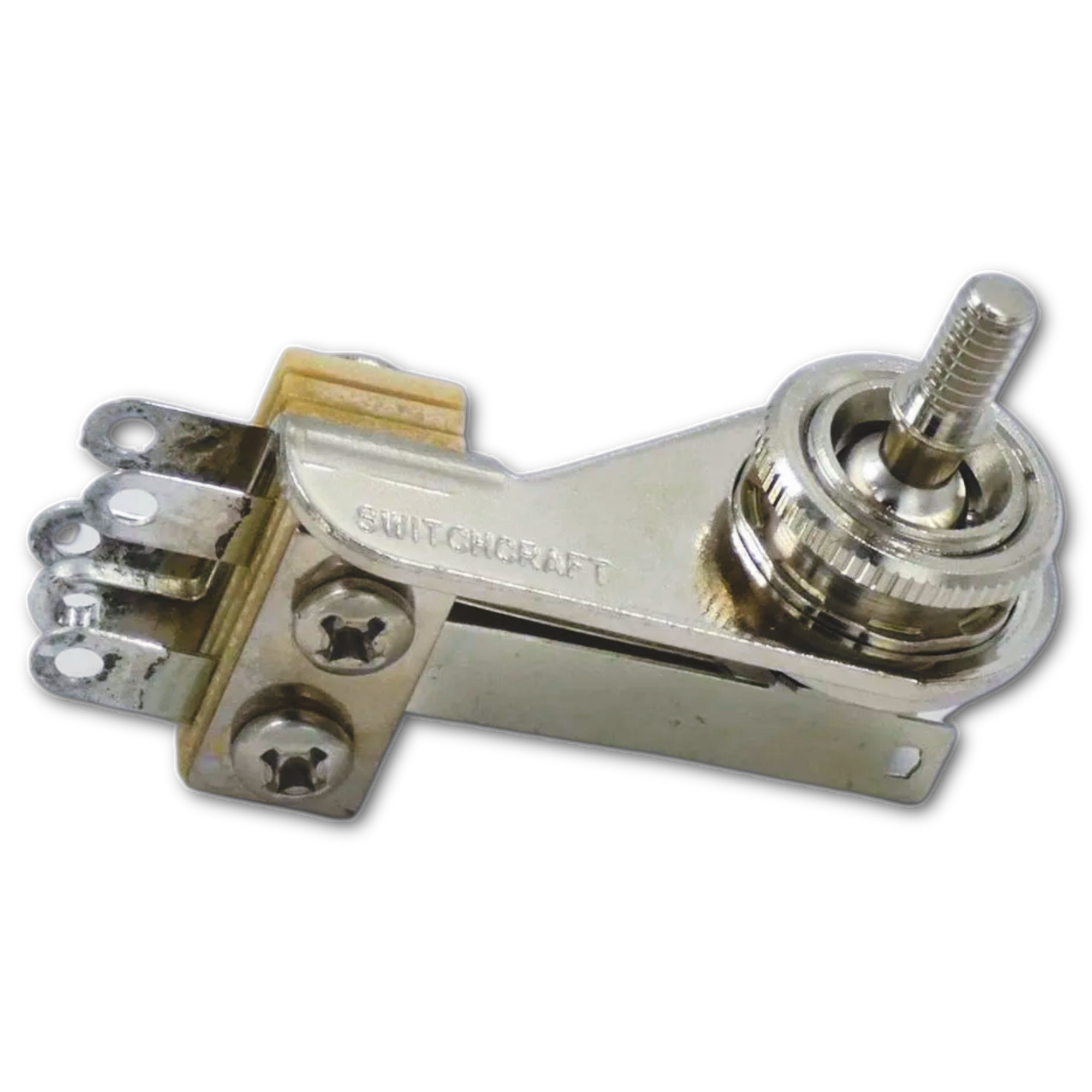

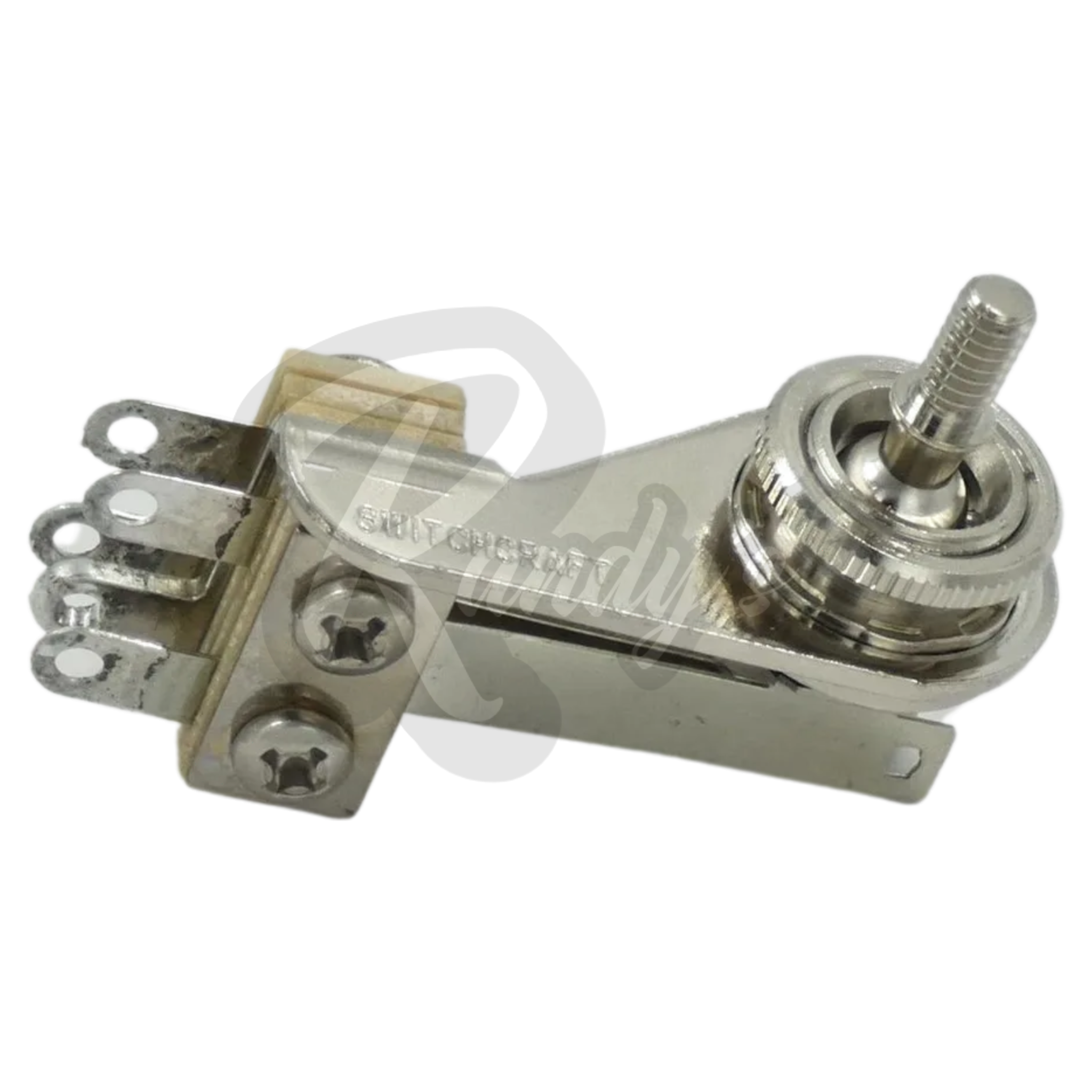

3-Way Sideways Toggle Switch (Right-Angle) - Fits Gibson® ES Hollowbody

When space is tight, this is the toggle switch for you. Designed for thinner-bodied guitars, the short 3/16" bushing length is ideal for pickguard mounting or thin wood tops where a standard switch simply won’t fit.

Individual Switchcraft right-angle (90°) 3-way sideways toggle switch for bass and electric guitar. Includes mounting hardware. Does not include switch tip. Fits Gibson® ES hollowbody guitars.

Available in:

• Black
  • SKU: SC3TSB

• Gold
  • SKU: SC3TSG

• Nickel
  • SKU: SC3TSN

Country of Manufacture: Made in USA

Electrical:

• Dielectric Strength
  • 250 VDC
• Fine Silver Contact Ratings
  • 3A
  • 300W maximum AC non-inductive load standard.
• Leakage Resistance
  • 1,000 MW or Greater
• Materials:
  • Frame

    • Steel (Plated)
  • Bushing & Shaft
    • Copper Alloy (Plated)
  • Springs
    • Copper Alloy

  • Mounting Hardware
    • Knurled Copper Alloy
  • Insulation
    • Rigid plastic spacers with plastic tubing through stack.
    • Rigid plastic and/or thermoplastic lifters.
    • Thermoplastic cam on actuator end.

• RoHS Compliant
• SPDT
